Round Pin Chain Shackles G-215

Round pin chain shackles meet the performance requirements of Federal Specification RR-C-271D
Type IVB,Grade A,Class 1,except for those provisions required of the contractor.

I want to inquire

Add to Inquiry Sheet

Products Details

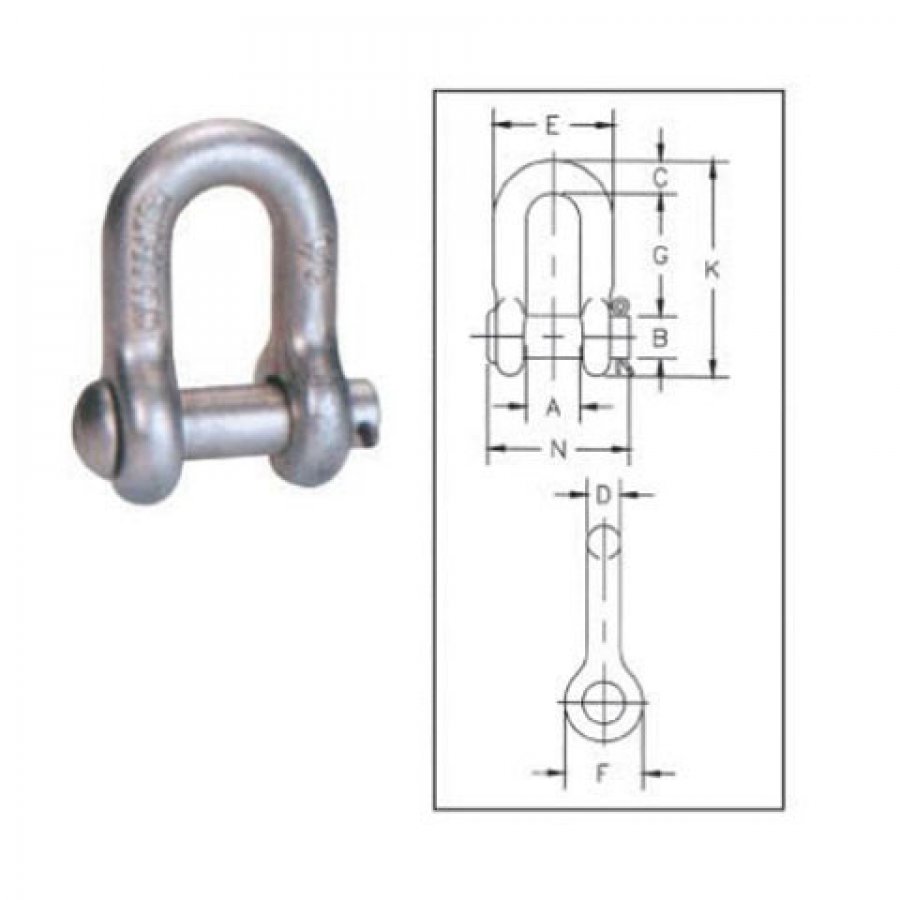

Nominal Size	Working Load Limit (t)	PART NUMBER	Weight Each	Dimensions (in.)									Tolerance +/-
Nominal Size	Working Load Limit (t)	PART NUMBER	(lbs)	A	B	C	D	E	F	G	K	N	G	A
1/4	1/2	RRCS0104	0.1	0.47	0.31	0.25	0.25	0.97	0.62	0.91	1.59	1.34	0.06	0.06
5/16	3/4	RRCS0516	0.18	0.53	0.38	0.31	0.31	1.15	0.75	1.07	1.91	1.63	0.06	0.06
3/8	1	RRCS0308	0.25	0.66	0.44	0.38	0.38	1.42	0.92	1.28	2.31	1.86	0.13	0.06
7/16	1-1/2	RRCS0716	0.4	0.75	0.5	0.44	0.44	1.63	1.06	1.48	2.67	2.13	0.13	0.06
1/2	2	RRCS0102	0.5	0.81	0.63	0.5	0.5	1.81	1.18	1.66	3.03	2.38	0.13	0.06
5/8	3-1/4	RRCS0508	1.21	1.06	0.75	0.63	0.63	2.32	1.5	2.04	3.76	2.91	0.13	0.06
3/4	4-3/4	RRCS0304	2	1.25	0.88	0.81	0.75	2.75	1.81	2.4	4.53	3.44	0.25	0.06
7/8	6-1/2	RRCS0708	3.28	1.44	1	0.97	0.88	3.2	2.1	2.86	5.33	3.81	0.25	0.06
1	8-1/2	RRCS1000	4.75	1.69	1.13	1	1	3.69	2.38	3.24	5.94	4.53	0.25	0.06
1-1/8	9-1/2	RRCS1108	6.3	1.81	1.25	1.25	1.13	4.07	2.68	3.61	6.78	5.13	0.25	0.06
1-1/4	12	RRCS1104	9	2.03	1.38	1.38	1.25	4.53	3	3.97	7.5	5.5	0.25	0.13
1-3/8	13-1/2	RRCS1308	12	2.25	1.5	1.5	1.38	5.01	3.31	4.43	8.28	6.13	0.25	0.13
1-1/2	17	RRCS1102	16.15	2.38	1.63	1.62	1.5	5.38	3.62	4.87	9.05	6.5	0.25	0.13
1-3/4	25	RRCS1304	29.96	2.88	2	2.12	1.75	6.38	4.19	5.82	10.97	7.75	0.25	0.13
2	35	RRCS2000	43.25	3.25	2.25	2.36	2.1	7.25	5	6.82	12.74	8.75	0.25	0.13
