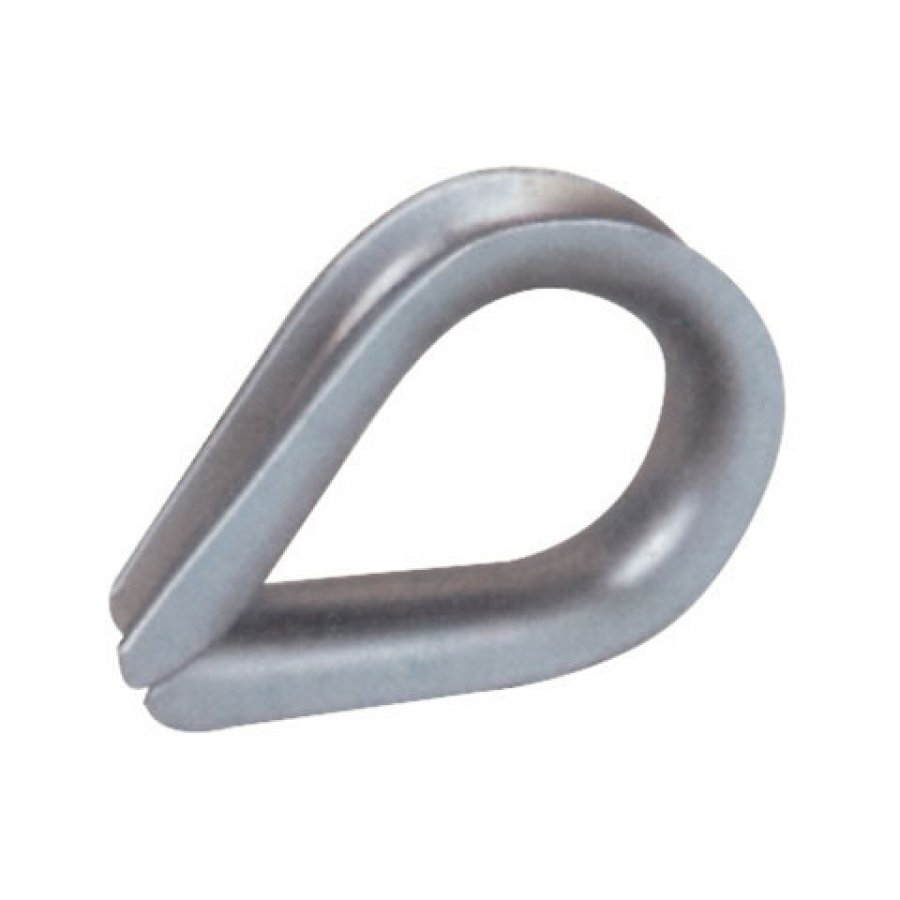

DIN 6899B Thimble

I want to inquire

Add to Inquiry Sheet

Products Details

PART NO.	ROPE DIA. (mm)	DIMENSIONS (mm)				WEIGHT kg/100pcs
PART NO.	ROPE DIA. (mm)	A	H	C	S	WEIGHT kg/100pcs
R6BT0025	2.5	3	19	12	1.6	0.5
R6BT0035	3.5	4	21	13	1.6	0.8
R6BT0040	4	5	23	14	1.9	1
R6BT0050	5	6	25	16	2.4	1.6
R6BT0060	6	7	28	18	2.4	1.9
R6BT0070	7	8	32	20	2.8	3
R6BT0090	9	10	38	24	3.1	4.7
R6BT0100	10	12	45	28	3.3	6.8
R6BT0130	13	13	48	30	3.3	8
R6BT0140	14	14	51	32	3.7	10
R6BT0150	15	16	58	36	3.8	14.5
R6BT0170	17	17	61	38	4.7	18
R6BT0160	16	18	64	40	4.7	20
R6BT0180	18	20	72	45	5.7	29
R6BT0200	20	22	80	50	5.7	32
R6BT0220	22	24	90	56	6.5	47
R6BT0240	24	26	99	62	6.3	59
R6BT0260	26	28	112	70	8	80
R6BT0280	28	30	120	75	8	110
R6BT0300	30	32	128	80	8	123
R6BT0320	32	34	152	95	8.5	156
