Extra Heavy Wire Rope Thimbles H.D.G.

G-411 meets the performance requirements of Federal Specification FF-T-276b
Type Ⅱ,except for those provisions required of the contractor.

·Hot Dip Galvanized steel.
·The standard choice for light duty applications and loading conditions.

I want to inquire

Add to Inquiry Sheet

Products Details

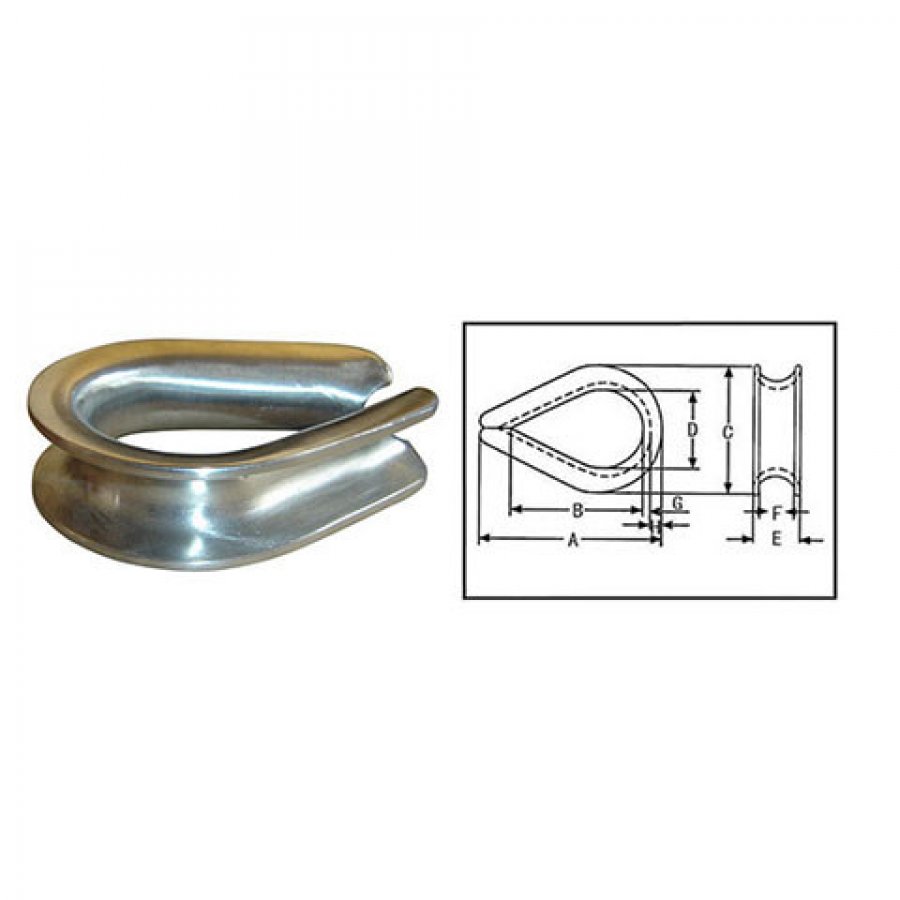

PART NO.	ROPE DIA. (inch)	DIMENSIONS (inch)								WEIGHT Per 100 (lbs.)
PART NO.	ROPE DIA. (inch)	A	B	C	D	E	F	G	H	WEIGHT Per 100 (lbs.)
RLDT0108	1/8	1.94	1.31	1.06	0.69	0.25	0.16	0.05	0.13	3.50
RLDT0316	3/16	1.94	1.31	1.06	0.69	0.31	0.22	0.05	0.13	3.50
RLDT0104	1/4	1.94	1.31	1.06	0.69	0.38	0.28	0.05	0.13	3.50
RLDT0516	5/16	2.13	1.5	1.25	0.81	0.44	0.34	0.05	0.13	4.00
RLDT0308	3/8	2.38	1.63	1.47	0.94	0.53	0.41	0.06	0.16	6.70
RLDT0102	1/2	2.75	1.88	1.75	1.13	0.69	0.53	0.08	0.19	12.50
RLDT0508	5/8	3.50	2.25	2.38	1.38	0.91	0.66	0.13	0.34	34.50
RLDT0304	3/4	3.75	2.50	2.69	1.63	1.08	0.78	0.14	0.34	47.10
RLDT0708	7/8	5.00	3.50	3.19	1.88	1.27	0.94	0.16	0.44	84.60
RLDT1000	1	5.69	4.25	3.75	2.50	1.39	1.06	0.16	0.41	97.50
RLDT1108	1-1/8-1-1/4	6.25	4.50	4.31	2.75	1.75	1.31	0.22	0.50	175.00
