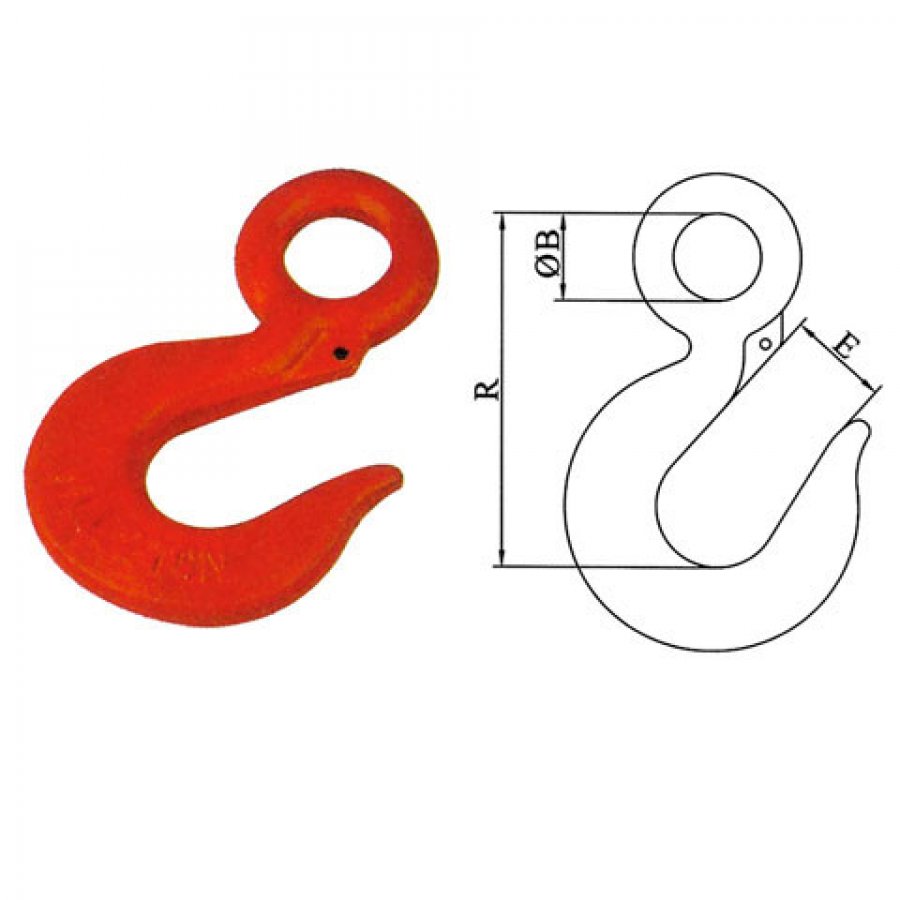

Eye Hoist Hooks

Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
320C-Carbon Steel; 320A-Alloy Steel.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.		W.L.L.		DIMENSIONS			N.W. lbs
PART. NO.		lbs		inch
320C	320A	320C	320A	B	E	R
REHC0104	REHA0102	1/4	1/2	0.39	0.57	1.78	0.14
REHC0102	RESA0304	1/2	3/4	0.63	0.87	2.80	0.35
REHC0304	RESA1000	3/4	1	0.75	0.94	3.22	0.55
REHC1000	RESA1102	1	1-1/2	0.91	1.03	3.66	0.75
REHC1102	RESA2000	1-1/2	2	1.12	1.06	4.09	1.25
REHC2000	RESA3000	2	3	1.25	1.22	4.69	1.70
REHC3000	RESA5000	3	5	1.56	1.50	5.78	3.60
REHC5000	RESA7000	5	7	2.00	1.88	7.38	7.08
REHC7102	RESAT110	7-1/2	11	2.44	2.25	9.06	13.00
REHCT100	RESAT150	10	15	2.83	2.52	10.09	22.00
REHCT150	RESAT220	15	22	3.50	3.40	12.53	39.50
