Shank Hooks

Forged Carbon Steel or Alloy Steel.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
319C-Carbon Steel; 319A-Alloy Steel.

I want to inquire

Add to Inquiry Sheet

Products Details

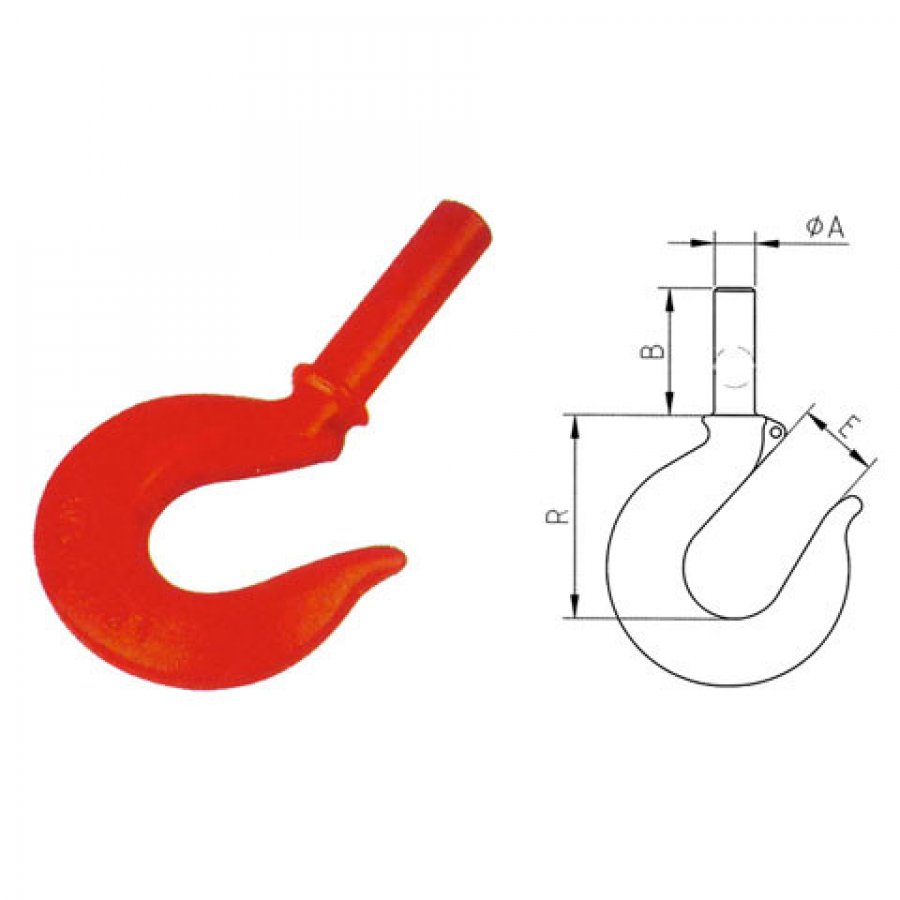

PART. NO.		W.L.L.		DIMENSIONS				N.W. lbs
PART. NO.		lbs		inch
319C	319A	319C	319A	A	B	E	R
RSHC0304	RSHA1000	3/4	1	0.59	2.00	0.94	2.28	0.50
RSHC1000	RSHA1102	1	1-1/2	0.66	2.25	1.03	2.53	0.75
RSHC1102	RSHA2000	1-1/2	2	0.72	2.50	1.06	2.69	1.00
RSHC2000	RSHA3000	2	3	0.88	2.75	1.22	3.06	1.85
RSHC3000	RSHA5000	3	5	1.16	3.25	1.50	3.78	3.85
RSHC5000	RSHA7000	5	7	1.41	3.75	1.88	4.75	7.25
RSHC7102	RSHAT110	7-1/2	11	1.69	4.25	2.25	5.88	13.00
RSHCT100	RSHAT150	10	15	1.75	4.50	2.52	6.41	19.40
