Swivel Hooks

Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
322C-Carbon Steel.
322A-Hook Alloy Steel; Bail: Carbon Steel.

I want to inquire

Add to Inquiry Sheet

Products Details

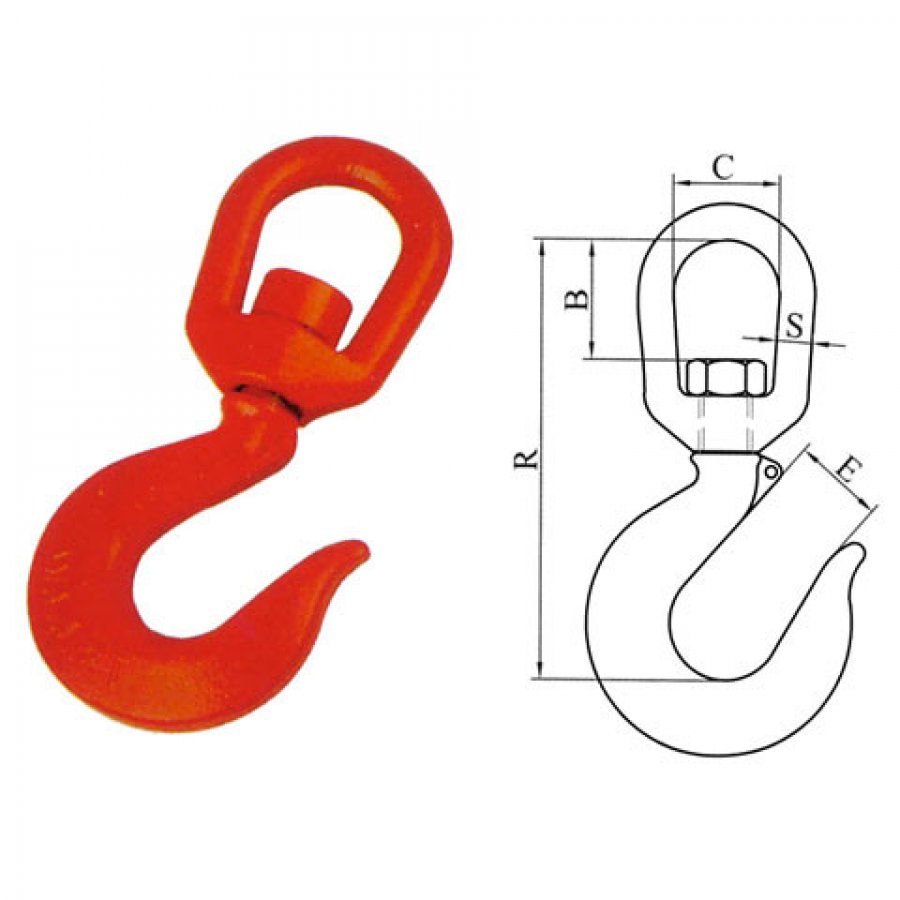

PART. NO.		W.L.L.		DIMENSIONS					N.W. lbs
PART. NO.		lbs		inch
322C	322A	322C	322A	B	C	E	R	S
RWHC0304	RWHA1000	3/4	1	15/16	1-1/4	15/16	4-15/32	3/8	0.75
RWHC1000	RWHA1102	1	1-1/2	1-5/16	1-1/2	1-1/32	5-9/32	1/2	1.25
RWHC1102	RWHA2000	1-1/2	2	1-5/8	1-3/4	1-1/16	6-1/64	5/8	2.25
RWHC2000	RWHA3000	2	3	1-9/16	1-3/4	1-7/32	6-3/8	5/8	2.57
RWHC3000	RWHA5000	3	5	1-3/4	2	1-1/2	7-13/32	3/4	4.75
RWHC5000	RWHA7000	5	7	2-5/16	2-1/2	1-7/8	9-19/32	1	10.29
RWHC7102	RWHAT110	7-1/2	11	2-3/8	2-3/4	2-1/4	11-1/8	1-1/8	16.25
RWHCT100	RWHAT150	10	15	2-13/16	3-1/8	2-1/2	11-15/16	1-1/4	23.25
RWHCT150	RWHAT220	15	22	4	4	3-2/5	16-5/6	1-1/2	54.20
