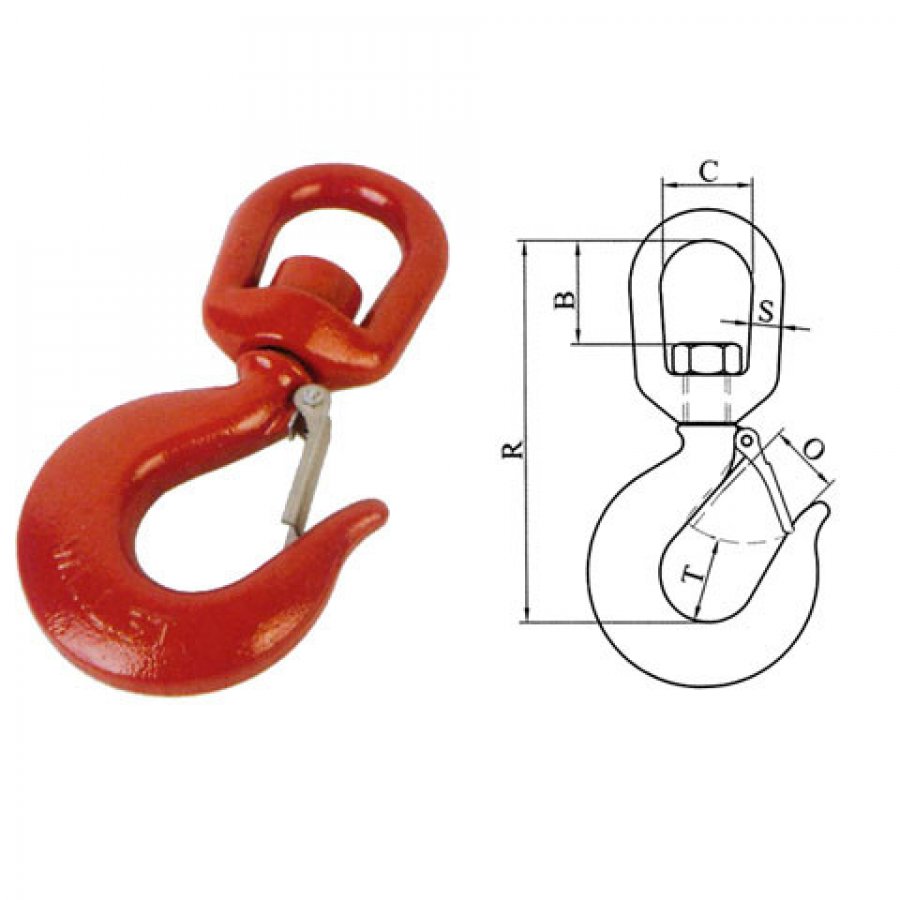

Swivel Hooks With Latches

Forged, Quenched & Tempered.
Proof Load is 2 times the Working Load Limit.
Ultimate Load is 5 times the Working Load Limit.
322C-Carbon Steel.
322A-Hook Alloy Steel; Bail: Carbon Steel.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.		W.L.L.		DIMENSIONS						N.W. lbs
PART. NO.		lbs		inch
322C	322A	322C	322A	B	C	O	R	S	T
RWLC0304	RWLA1000	3/4	1	15/16	1-1/4	7/8	4-15/32	3/8	13/16	0.77
RWLC1000	RWLA1102	1	1-1/2	1-5/16	1-1/2	31/32	5-9/32	1/2	13/16	1.27
RWLC1102	RWLA2000	1-1/2	2	1-5/8	1-3/4	1	6-1/64	5/8	27/32	2.28
RWLC2000	RWLA3000	2	3	1-9/16	1-3/4	1-1/8	6-3/8	5/8	1-3/16	2.60
RWLC3000	RWLA5000	3	5	1-3/4	2	1-11/32	7-13/32	3/4	1-3/8	4.81
RWLC5000	RWLA7000	5	7	2-5/16	2-1/2	1-11/16	9-19/32	1	1-25/32	10.40
RWLC7102	RWLAT110	7-1/2	11	2-3/8	2-3/4	2-1/6	11-1/8	1-1/8	2-1/8	16.42
RWLCT100	RWLAT150	10	15	2-13/16	3-1/8	2-1/4	11-15/16	1-1/4	2-1/2	23.40
RWLCT150	RWLAT220	15	22	4	4	2-1/32	16-5/6	1-1/2	2-5/6	54.90
