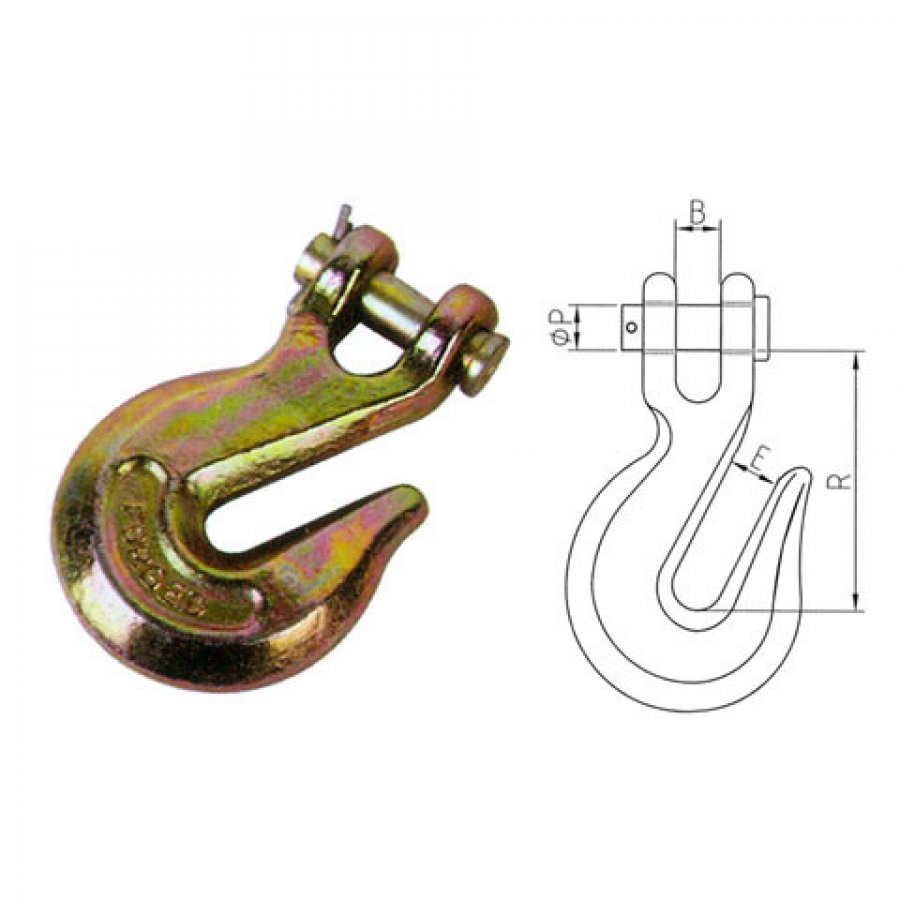

Clevis Grab Hooks

H-330 Forged Carbon Steel.
A-330 Forged Alloy Steel.
Quenched & Tempered.
Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.		CHAIN SIZE inch	W.L.L.		DIMENSIONS				N.W. lbs
PART. NO.			lbs		inch
H-330	A-330		H-330	A-330	B	E	P	R
RCGH0104	RCGA0104	1/4	2,600	3,500	0.36	0.40	0.38	1.97	0.40
RCGH0516	RCGA0516	5/16	3,900	4,700	0.40	0.44	0.44	2.26	0.79
RCGH0308	RCGA0308	3/8	5,400	7,100	0.48	0.50	0.47	2.63	1.00
RCGH0716	RCGA0716	7/16	7,200	8,750	0.66	0.56	0.56	2.75	1.50
RCGH0102	RCGA0102	1/2	9,200	12,000	0.75	0.66	0.63	3.19	2.22
RCGH0508	RCGA0508	5/8	13,000	15,800	0.91	0.78	0.75	4.09	4.40
RCGH0304	RCGA0304	3/4	20,200	24,700	0.94	0.94	0.88	4.63	6.50
