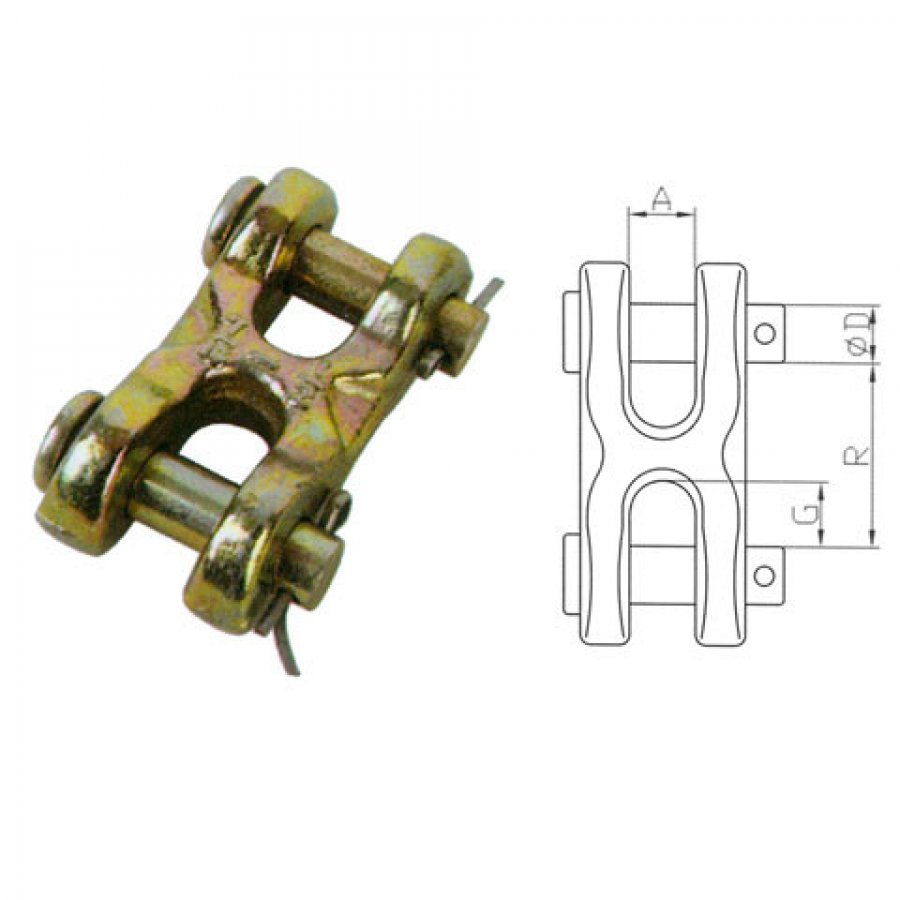

Twin Clevis Links

·Forged Carbon Steel or Alloy Steel.
·Quenched & Tempered
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART NO.		CHAIN SIZE (inch.)	W.L.L. (lbs.)	DIMENSIONS(inch.)							WEIGHT (lbs.)
Carbon	Alloy	CHAIN SIZE (inch.)	W.L.L. (lbs.)	A	B	C	D	E	F	R	WEIGHT (lbs.)
RDCC0104	RDCA0104	1/4	2600	0.50	0.75	0.50	0.31	0.38	0.75	1.50	0.44
RDCC0105	RDCA0105	5/16- 3/8	5400	0.56	1.00	0.63	0.44	0.47	1.00	1.81	0.81
RDCC0106	RDCA0106	7/16	7000	0.69	1.13	0.69	0.56	0.59	1.09	2.19	1.28
RDCC0107	RDCA0107	1/2	9200	0.81	1.25	0.75	0.63	0.66	1.25	2.47	1.68
RDCC0108	RDCA0108	5/8	17500	0.78	1.63	1.00	0.75	0.83	1.51	3.03	2.91
