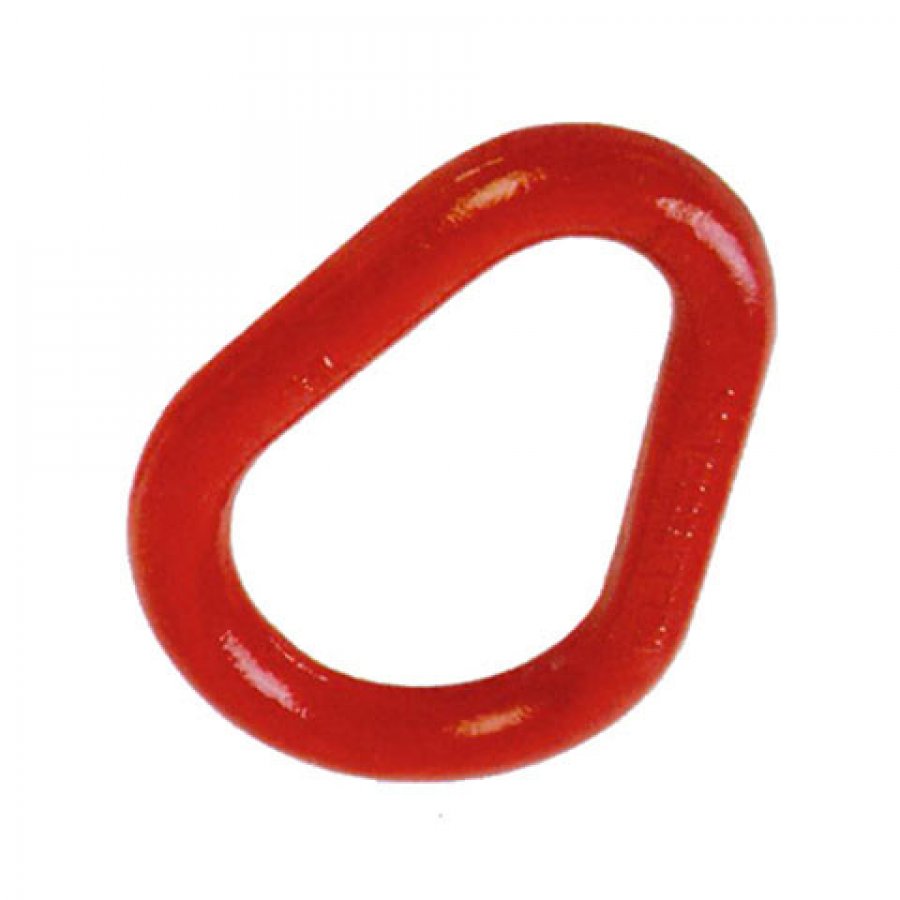

Weldless Pear Links

·Forged Carbon Steel or Alloy Steel.
·Quenched & Tempered.
·Ultimate Load is 5 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART NO.		SIZE (inch.)	INSIDE LENGTH (inch.)	INSIDE WIDTH(inch.)		WEIGHT (lbs.)	W.L.L. 【Single Pull】(lbs.)
Carbon	Alloy	SIZE (inch.)	INSIDE LENGTH (inch.)	Small End	Large End	WEIGHT (lbs.)	Carbon	Alloy
RPLC0308	RPLA0308	3/8	2-1/4	3/4	1-1/2	0.23	1600	-
RPLC0102	RPLA0102	1/2	3	1	2	0.55	2900	7000
RPLC0508	RPLA0508	5/8	3-3/4	1-1/4	2-1/2	1.10	4200	9000
RPLC0304	RPLA0304	3/4	4-1/2	1-1/2	3	1.95	6000	12300
RPLC0708	RPLA0708	7/8	5-1/4	1-3/4	3-1/2	2.78	8300	14000
RPLC1000	RPLA1000	1	6	2	4	4.30	10800	24360
RPLC1104	RPLA1104	1-1/4	7-3/4	2-1/2	5	8.50	16750	36000
RPLC1308	RPLA1308	1-3/8	8-1/4	2-3/4	5-1/2	11.50	20500	43000
RPLC1102	RPLA1102	1-1/2	9	3	6	14.25	-	54300
RPLC1304	RPLA1304	1-3/4	10-1/2	3-1/2	7	22.50	-	84900
RPLC2000	RPLA2000	2	12	4	8	34.00	-	102600
