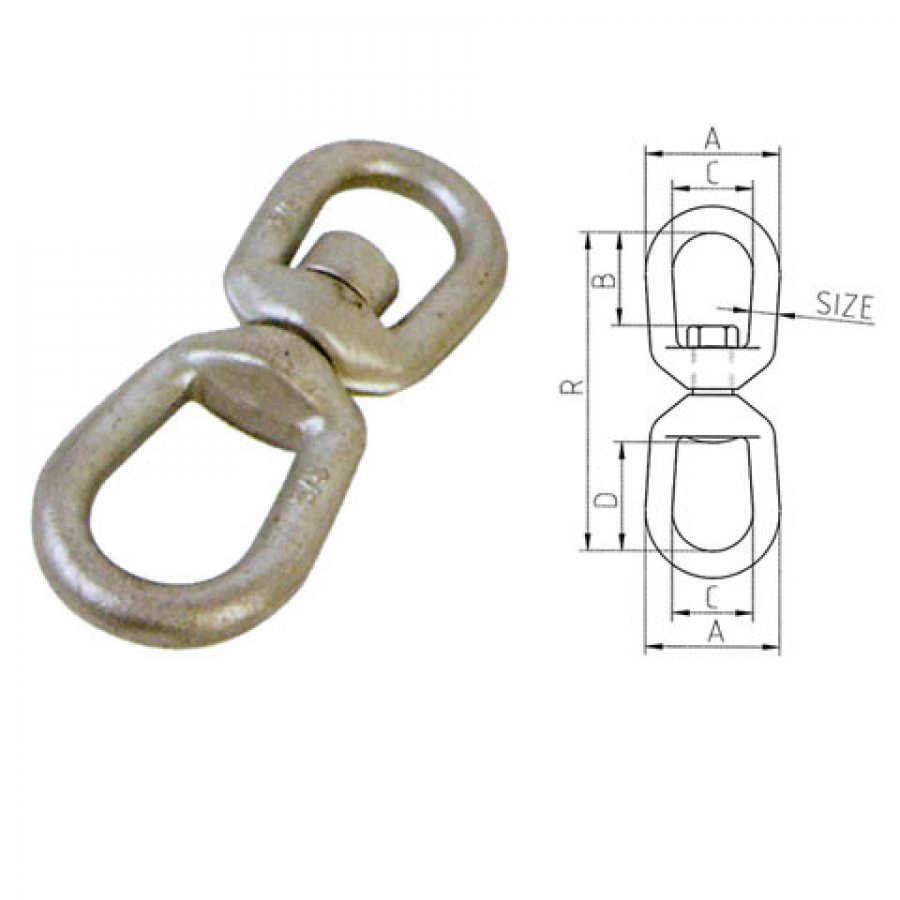

Chain Swivel (G-401)Hot Dip Galvanized

·Forged Carbon Steel
·Quenched & Tempered
·Ultimate Load is 5 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART NO.	CHAIN SIZE (inch.)	DIMENSIONS(inch.)					W.L.L. (lbs.)	WEIGHT (kgs)
PART NO.	CHAIN SIZE (inch.)	B	C	D	G	T	W.L.L. (lbs.)	WEIGHT (kgs)
R401S0104	1/4	0.69	0.75	0.62	0.25	3.00	850	0.06
R401S0516	5/16	0.81	1.00	0.72	0.31	3.59	1250	0.12
R401S0308	3/8	0.94	1.25	1.00	0.38	4.44	2500	0.25
R401S0102	1/2	1.31	1.50	1.25	0.50	5.69	3600	0.51
R401S0508	5/8	1.56	1.75	1.50	0.62	6.89	5200	0.95
R401S0304	3/4	1.75	2.00	1.75	0.75	7.84	7200	1.45
R401S0708	7/8	2.06	2.25	2.00	0.87	9.02	10000	2.30
R401S1000	1	2.31	2.50	2.25	1.00	10.24	12500	3.61
R401S1108	1-1/8	2.33	2.75	2.50	1.13	11.25	16500	5.45
R401S1104	1-1/4	2.66	3.13	2.75	1.25	12.15	18000	7.00
R401S1102	1-1/2	4.40	4.00	3.00	1.50	16.38	45200	15.04
