Regular Swivel

·Forged,Quenched & Tempered
·Hot Dip Galvanized.
·Ultimate Load is 5 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

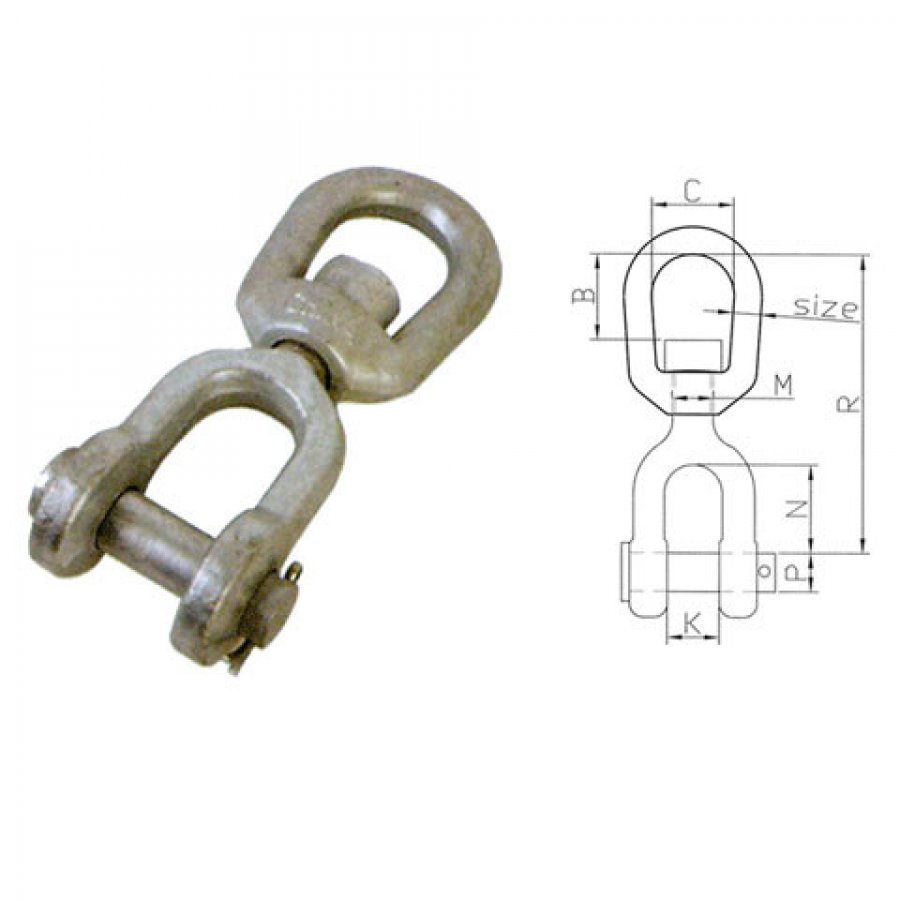

PART NO.	SIZE (inch.)	DIMENSIONS(inch.)						W.L.L. (lbs.)	WEIGHT (lbs.)
PART NO.	SIZE (inch.)	A	B	C	D	R		W.L.L. (lbs.)	WEIGHT (lbs.)
R402S0104	1/4	1-1/4	1-1/6	3/4	1-1/16	2-15/16		850	0.21
R402S0516	5/16	1-5/8	13/16	1	1-1/4	3-9/16		1250	0.39
R402S0308	3/8	2	15/16	1-1/4	1-1/2	4-5/16		2250	0.75
R402S0102	1/2	2-1/2	1-5/16	1-1/2	2	5-7/16		3600	1.43
R402S0508	5/8	3	1-9/16	1-3/4	2-3/8	6-9/16		5200	2.50
R402S0304	3/4	3-1/2	1-3/4	2	2-5/8	7-3/16		7200	4.13
R402S0708	7/8	4	2-1/16	2-1/4	3-1/16	8-3/8		10000	6.25
R402S1000	1	4-1/2	2-5/16	2-1/2	3-1/2	9-5/8		12500	9.00
R402S1108	1-1/8	5	2-3/8	2-3/4	3-3/4	7-7/32		16500	11.00
R402S1104	1-1/4	5-5/8	2-11/16	3-1/8	2-11/16	11-1/8		18000	16.37
R402S1102	1-1/2	7	4-3/16	4	4-3/16	17-1/8		45200	49.06
