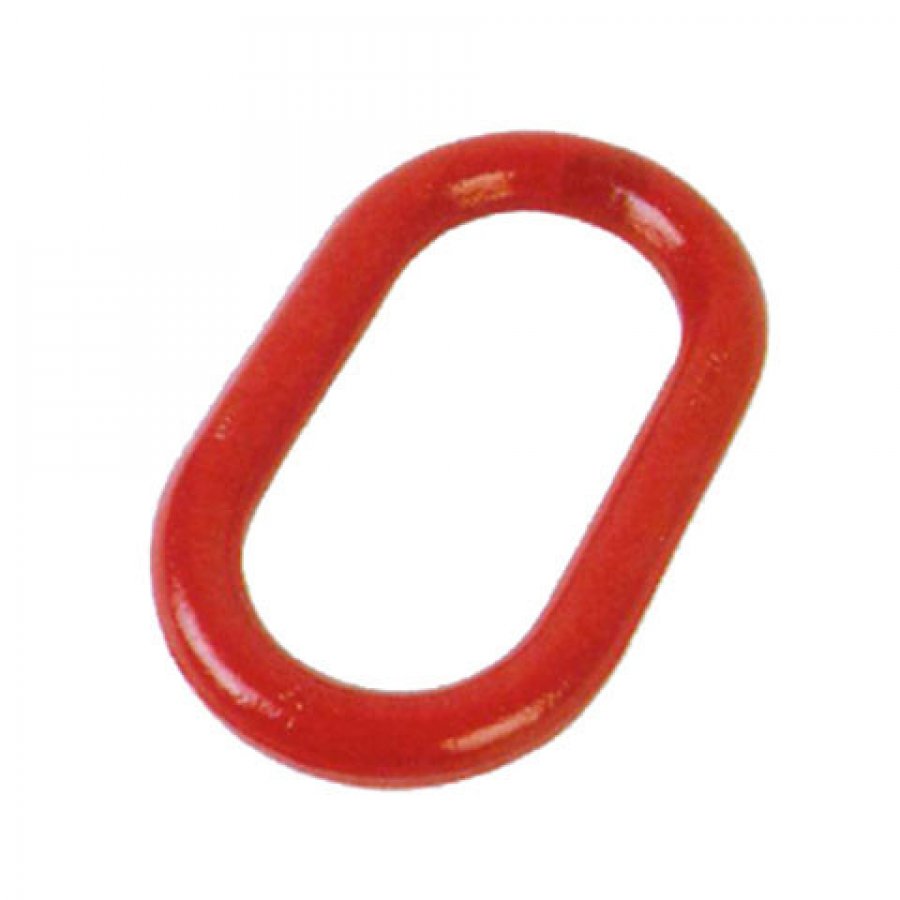

Weldless Alloy Master Links

·Forged Alloy Steel
·Quenched & Tempered
·Minimum Ultimate Load is 5 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART NO.	SIZE (inch.)	INSIDE LENGTH (inch.)	INSIDE WIDTH (inch.)	WEIGHT (lbs.)	W.L.L. 【Single Pull】 (lbs.)	PROOF LOAD (lbs)
PART NO.	SIZE (inch.)	INSIDE LENGTH (inch.)	INSIDE WIDTH (inch.)	WEIGHT (lbs.)	W.L.L. 【Single Pull】 (lbs.)	PROOF LOAD (lbs)
RAML0102	1/2	5	2-1/2	0.89	7000	14000
RAML0508	5/8	6	3	1.63	9000	18000
RAML0304	3/4	5-1/2	2-3/4	2.25	12300	28400
RAML0708	7/8	7	3-1/2	3.53	15000	30000
RAML1000	1	7	3-1/2	5.00	24360	48700
RAML1104	1-1/4	8-3/4	4- 3/8	9.75	36200	72400
RAML1102	1-1/2	10-1/2	5-1/4	17.12	54300	112200
RAML1304	1-3/4	12	6	26.12	84900	169800
RAML2000	2	14	7	38.00	102600	205200
