Connecting Links

·Forged Alloy Steel,Quenched & Tempered
·Test Load is 2.2 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

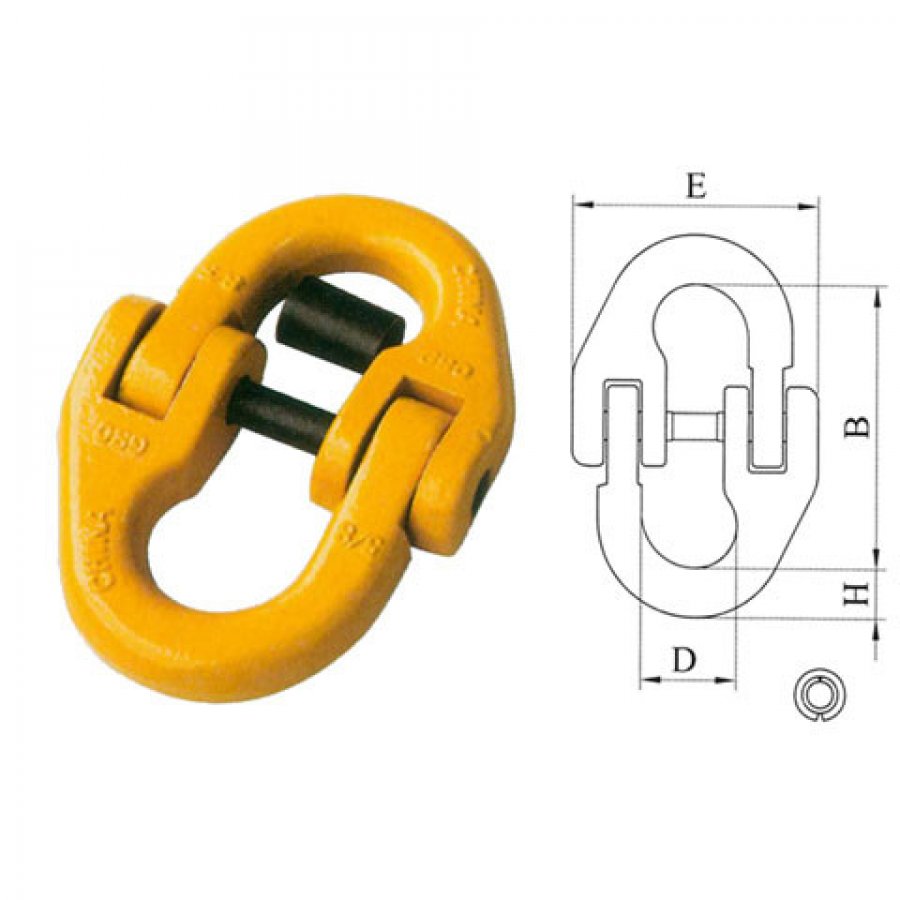

PART. NO.	CHAIN SIZE		DIMENSIONS(inch)				W.L.L. (lbs.)	WEIGHT (lbs.)
PART. NO.	(mm)	(inch)	B	D	E	H	W.L.L. (lbs.)	WEIGHT (lbs.)
83370070	7	9/32( 1/4)	1.85	0.68	1.81	0.35	3500	0.28
83370080	8	5/16	2.20	0.77	1.98	0.38	4500	0.55
83370100	10	3/8	2.60	0.94	2.56	0.52	7100	0.84
83370130	13	1/2	3.40	1.27	3.30	0.64	12000	1.60
83370160	16	5/8	4.13	1.48	3.65	0.75	18100	2.86
83370200	20	3/4	5.08	1.75	4.70	0.96	28300	5.00
83370220	22	7/8	5.47	2.18	5.63	1.06	34200	7.50
83370250	25	1	6.10	2.50	6.22	1.22	47700	11.03
83370320	32	1-1/4	7.99	2.76	8.12	1.50	72300	20.39
