Connecting Links,European Type

·Forged Alloy Steel,Quenched & Tempered
·Proof Load is 2 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

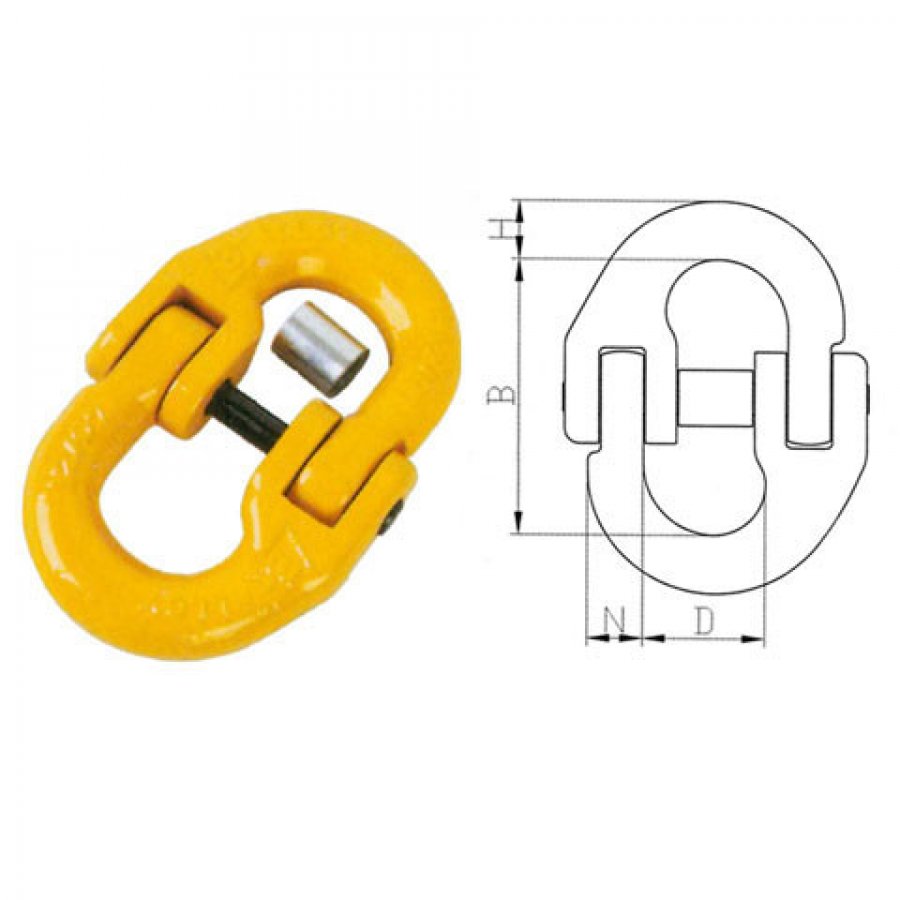

PART. NO.	SIZE mm	DIMENSIONS(mm)				W.L.L. (tons.)	WEIGHT (kgs.)
		B	D	H	N	W.L.L. (tons.)	WEIGHT (kgs.)
8ECL0060	6	45	19	7	7	1.12	0.07
8ECL0070	7	52	19	8.3	8	1.6	0.10
8ECL0080	8	65	23	9.5	9	2.0	0.25
8ECL0100	10	73	27	12	11.5	3.15	0.35
8ECL0130	13	88	34	16	15.5	5.3	0.68
8ECL0160	16	103	39	19	19	8.0	1.10
8ECL0180	18	116	47	22	22.5	10.0	1.90
8ECL0200	20	116	47	23.5	24	12.5	2.20
8ECL0220	22	133	55	26.5	26.5	15.0	2.72
8ECL0260	26	148	66	31.5	29.5	21.2	5.05
8ECL0320	32	183	79	38	38	31.5	10.02
