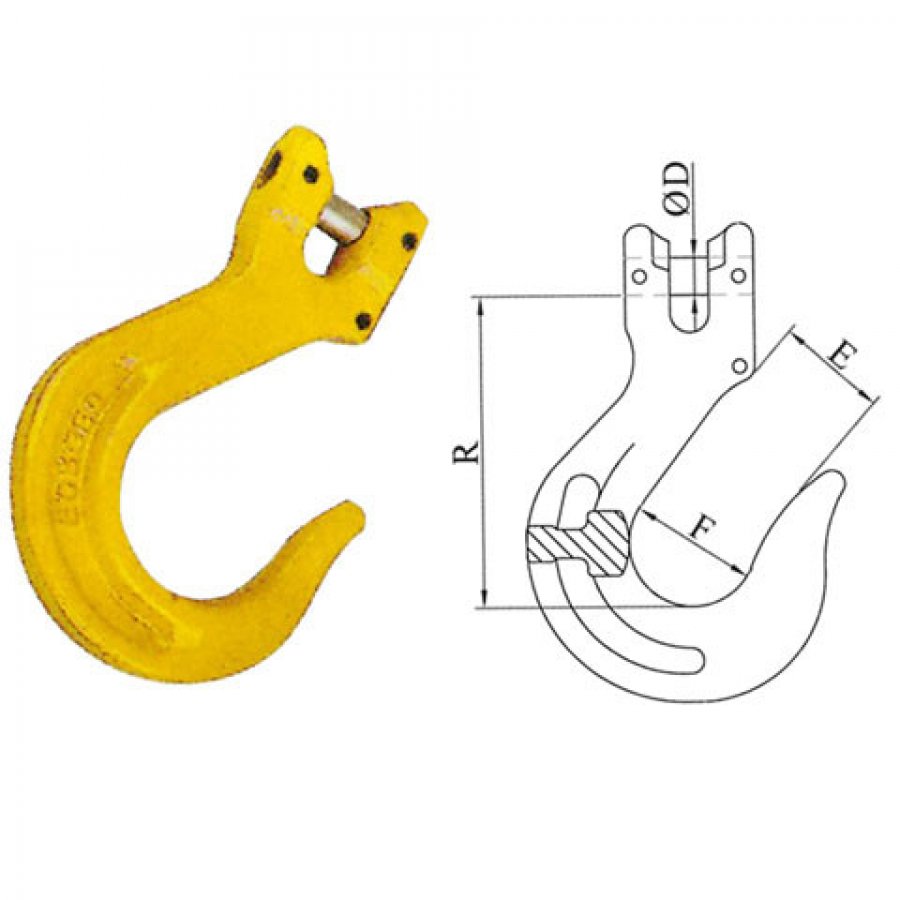

Clevis Sling Hook

·Forged Alloy Steel.
·Quenched & Tempered.
·Proof Load is 2.5 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.


I want to inquire
Add to Inquiry Sheet

Products Details

PART. NO. SIZE
(inch)		DIMENSIONS(inch)W.L.L.
(lbs.)		WEIGHT
(lbs.)
DEFR
8CSH0104 1/4 23/64 1-17/16 1-3/4 3-23/3235000.95
8CSH0308 3/8 29/64 1-15/32 2-15/64 4-47/6471002.15
8CSH1932 19/32 1/2 2-1/8 2-1/2 5-21/32120004.35
8CSH0508 5/8 3/4 2-11/32 2-7/8 6-19/32181008.00
