Welded Master Links With Flat,European Type

·Welded Alloy Steel,Quenched & Tempered
·Test Load is 2 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

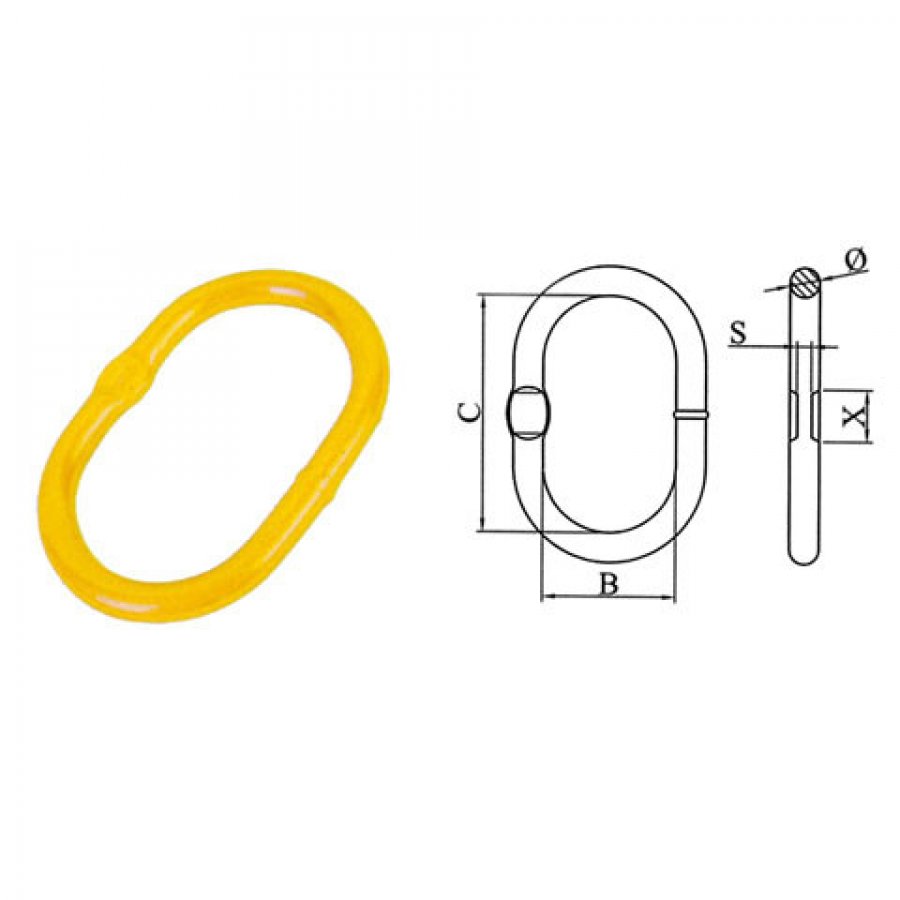

PART. NO.	SIZE (inch)	DIMENSIONS(mm)					W.L.L. (TONS)	WEIGHT (kgs)
PART. NO.	SIZE (inch)	B	C	Φ	S	X	W.L.L. (TONS)	WEIGHT (kgs)
8EWM0060	6-8	60	110	14	7	28	1.6	0.34
8EWM0070	7-8	60	110	16	7	28	2.0	0.60
8EWM0080	8-8	75	135	18	7	38	3.15	0.82
8EWM0100	10-8	90	160	22	11	38	5.3	1.60
8EWM0130	13-8	100	180	27	13	48	8.0	2.46
8EWM0160	16-8	110	200	32	17	48	11.2	4.25
8EWM0180	18-8	140	260	37	19	56	14.0	6.35
8EWM0200	20-8	160	300	40	22	56	17.0	9.00
8EWM0220	22-8	180	340	45	26	60	21.2	12.80
8EWM0260	26-8	190	350	50	28	60	31.5	17.20
8EWM0320	32-8	200	400	56	32	60	45.0	24.20
8EWM0360	36-8	220	430	63	38	60	56.0	32.60
