Welded Master Link Assemblies With Flat,European Type

·Welded Alloy Steel,Quenched & Tempered
·Test Load is 2 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.	SIZE (inch)	DIMENSIONS(mm)								W.L.L. (tons)	WEIGHT (kgs)

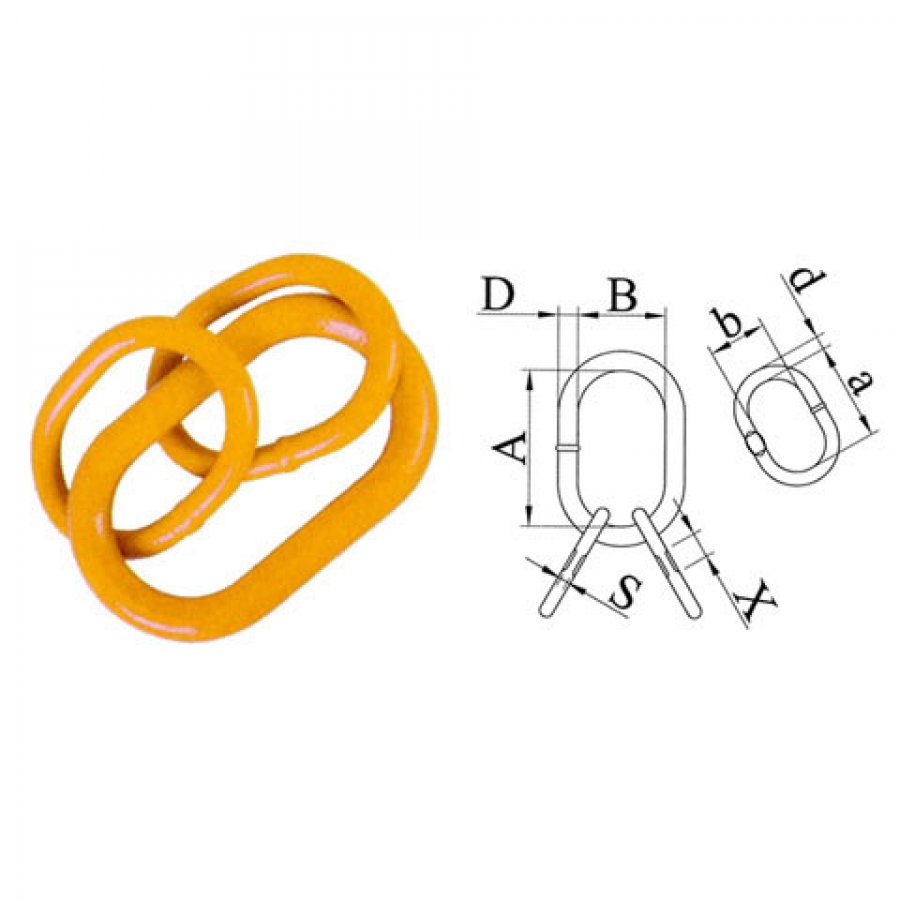

PART. NO.	SIZE (inch)	A	B	D	a	b	d	S	X	W.L.L. (tons)	WEIGHT (kgs)
8EWA0060	6-8	135	75	18	54	25	14	7	25	2.36	1.16
8EWA0070	7-8	135	75	18	60	38	14	7	25	3.15	1.20
8EWA0080	8-8	160	90	22	70	34	16	7	35	4.25	2.22
8EWA0100	10-8	180	100	28	85	40	18	11	35	6.70	3.36
8EWA0130	13-8	200	110	32	115	50	22	13	48	11.20	6.02
8EWA0160	16-8	260	140	37	140	65	26	17	48	17.00	9.94
8EWA0180	18-8	340	180	45	180	100	32	19	56	21.20	20.1
8EWA0200	20-8	350	190	50	180	100	32	22	56	26.50	23.8
8EWA0220	22-8	350	190	50	180	100	36	24	56	31.50	26.0
8EWA0260	26-8	400	200	56	180	100	40	26	60	45.00	35.2
8EWA0280	28-8	430	220	63	180	100	45	30	60	50.00	47.6
