Welded Master Link Assembly

·Welded Alloy Steel,Quenched & Tempered
·Proof Load is 2 times the Working Load Limit.
·Design Factor of 4 to 1 for Chain,5 to 1 for Wire Rope.

I want to inquire

Add to Inquiry Sheet

Products Details

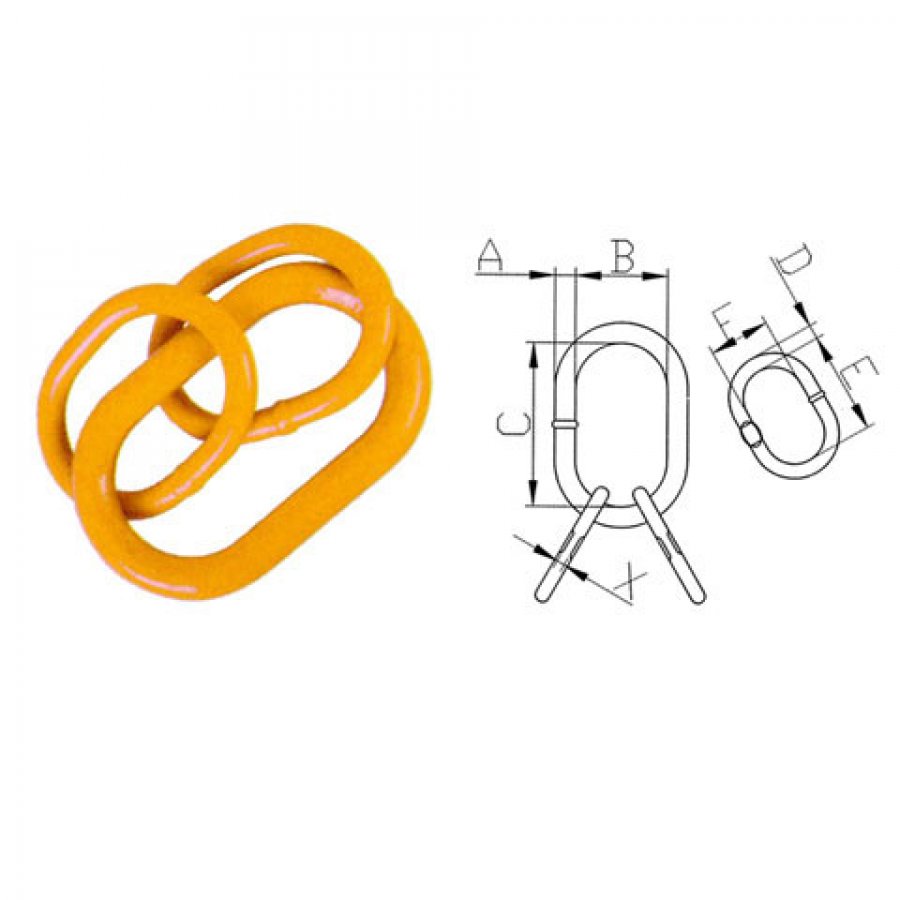

PART. NO.	SIZE (inch)	DIMENSIONS(mm)							W.L.L. (lbs.)		WEIGHT (kgs)
PART. NO.	SIZE (inch)	A	B	C	D	E	F	X	4:1	5:1	WEIGHT (kgs)
8WMA0102	1/2	14	59.9	100.1	12	85.1	39.9	6.1	5300	4300	0.60
8WMA0508	5/8	18	88.9	160	14	100.1	59.9	7.6	7100	5700	1.66
8WMA0304	3/4	20	88.9	160	14	100.1	59.9	7.6	11000	8800	1.82
8WMA0708	7/8	22	100.1	180.1	18	150.1	70.1	8.4	17600	14100	2.61
8WMA1000	1	28	140	270	22	160	89.9	13.5	26500	21200	7.40
8WMA1104	1- 1/4	32	140	270	25	180.1	100.1	16.5	38400	30720	10.22
