Welded Alloy Master Links

·Forged Alloy Steel,Quenched & Tempered
·Proof Load is 2 times the Working Load Limit.
·Design Factor of 4 to 1 for Chain,5 to 1 for Wire Rope.

I want to inquire

Add to Inquiry Sheet

Products Details

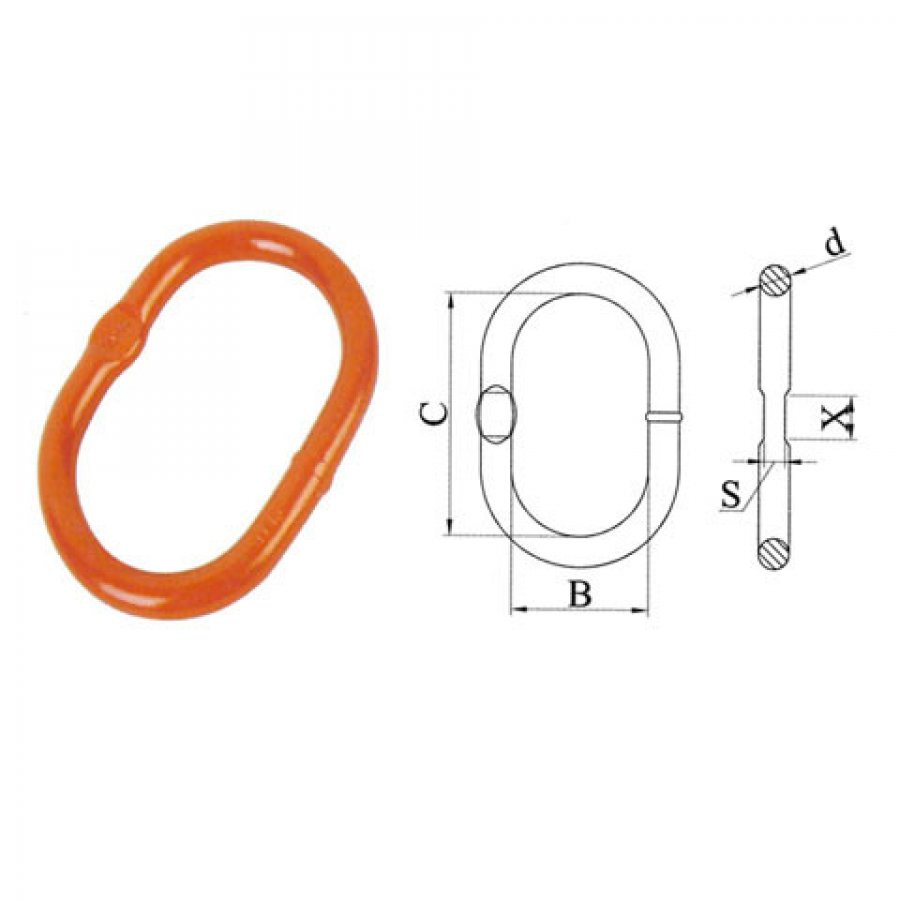

PART. NO.	SIZE (inch.)	DIMENSIONS(mm)					W.L.L. (lbs.)		WEIGHT (kgs)
PART. NO.	SIZE (inch.)	B	C	d	S	X	4:1	5:1	WEIGHT (kgs)
8WML0716	7/16	59.9	100.1	12	6.1	21	3500	2800	0.28
8WML0102	1/2	59.9	100.1	14	7.6	21	6100	4900	0.38
8WML1116	11/16	89.9	160.0	18	8.5	21	8800	7100	0.96
8WML0304	3/4	89.9	160.0	20	10.4	21	14300	11500	1.20
8WML0708	7/8	100.1	180.1	22	13.5	21	18100	14500	1.63
8WML1000	1	100.1	180.1	25	16.5	25	25300	20300	2.16
8WML1108	1-1/8	140.0	270.0	28	16.5	25	26000	20800	3.85
8WML1104	1-1/4	140.0	270.0	32	18.5	25	35300	28300	6.22
