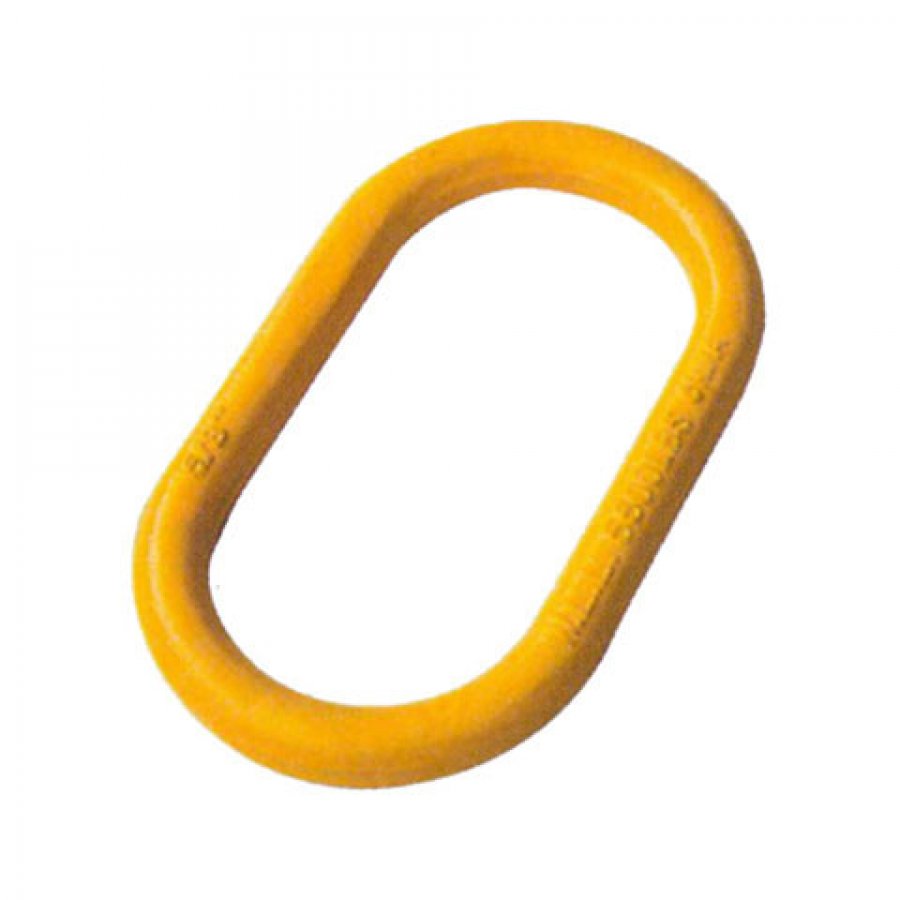

Welded Alloy Master Links

·Forged Alloy Steel.
·Quenched & Tempered
·Minimum Ultimate Load is 5 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

PART. NO.	SIZE (inch)	INSIDE LENGTH (inch)	INSIDE WIDTH (inch)	WEIGHT (lbs)	W.L.L. 【Single Pull】 (lbs.)	PROOF LOAD (lbs)
PART. NO.	SIZE (inch)	INSIDE LENGTH (inch)	INSIDE WIDTH (inch)	WEIGHT (lbs)	W.L.L. 【Single Pull】 (lbs.)	PROOF LOAD (lbs)
8AML0102	1/2	5	2-1/2	0.89	7000	14000
8AML0508	5/8	6	3	1.63	9000	18000
8AML0304	3/4	5-1/2	2-3/4	2.25	12300	28400
8AML0708	7/8	7	3-1/2	3.53	15000	30000
8AML1000	1	7	3-1/2	5.00	24360	48700
8AML1104	1-1/4	8-3/4	4- 3/8	9.75	36200	72400
8AML1102	1-1/2	10-1/2	5-1/4	17.12	54300	112200
8AML1304	1-3/4	12	6	26.12	84900	169800
8AML2000	2	14	7	38.00	102600	205200
