Master Links Assemblies

·Master Links Forged Alloy Steel,Others Welded.
·Quenched & Tempered
·Proof Load is 2 times the Working Load Limit.
·Ultimate Load is 5 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

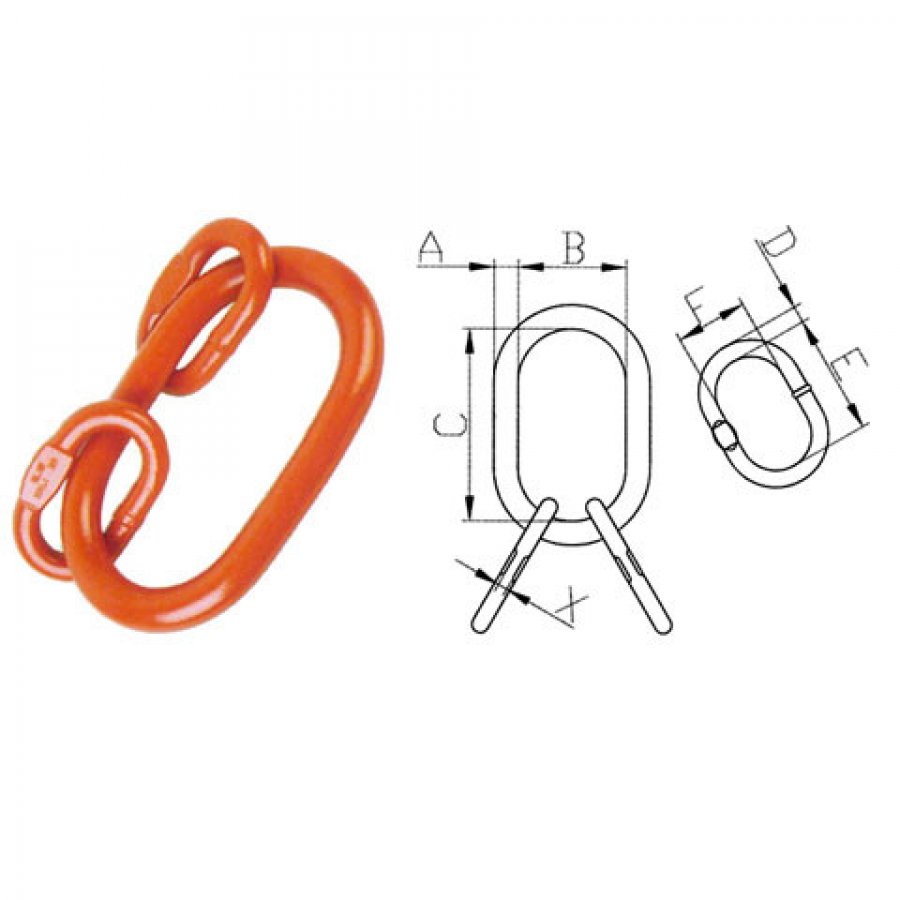

PART. NO.	SIZE (inch.)	DIMENSIONS(mm)							W.L.L. (lbs.)	WEIGHT (kgs)
PART. NO.	SIZE (inch.)	A	B	C	D	E	F	X	W.L.L. (lbs.)	WEIGHT (kgs)
8MLA0508	5/8	15.9	76.2	152.4	12.7	76.2	31.8	6.4	6000	1.19
8MLA0304	3/4	19.1	69.9	139.7	14.2	85.1	39.9	7.6	9100	1.34
8MLA0708	7/8	22.2	88.9	177.8	15.9	100.1	59.9	7.6	14450	2.10
8MLA1000	1	25.4	88.9	177.8	17.5	100.1	59.9	8.4	18400	2.88
8MLA1104	1-1/4	31.8	111.1	222.3	22.4	100.1	59.9	13.5	31200	5.94
8MLA1102	1-1/2	38.1	133.4	266.7	28.7	150.1	70.1	16.5	47000	10.89
8MLA1304	1-3/4	44.5	152.4	304.8	31.8	160.0	89.9	18.5	73500	16.02
8MLA2000	2	50.8	177.8	355.6	38.1	180.1	100.1	-	88900	25.79
