Eye Hooks Series With Positive Locking Latches

·Forged Alloy Steel,Quenched & Tempered
·Proof Load is 2.5 times the Working Load Limit.
·Ultimate Load is 4 times the Working Load Limit.

I want to inquire

Add to Inquiry Sheet

Products Details

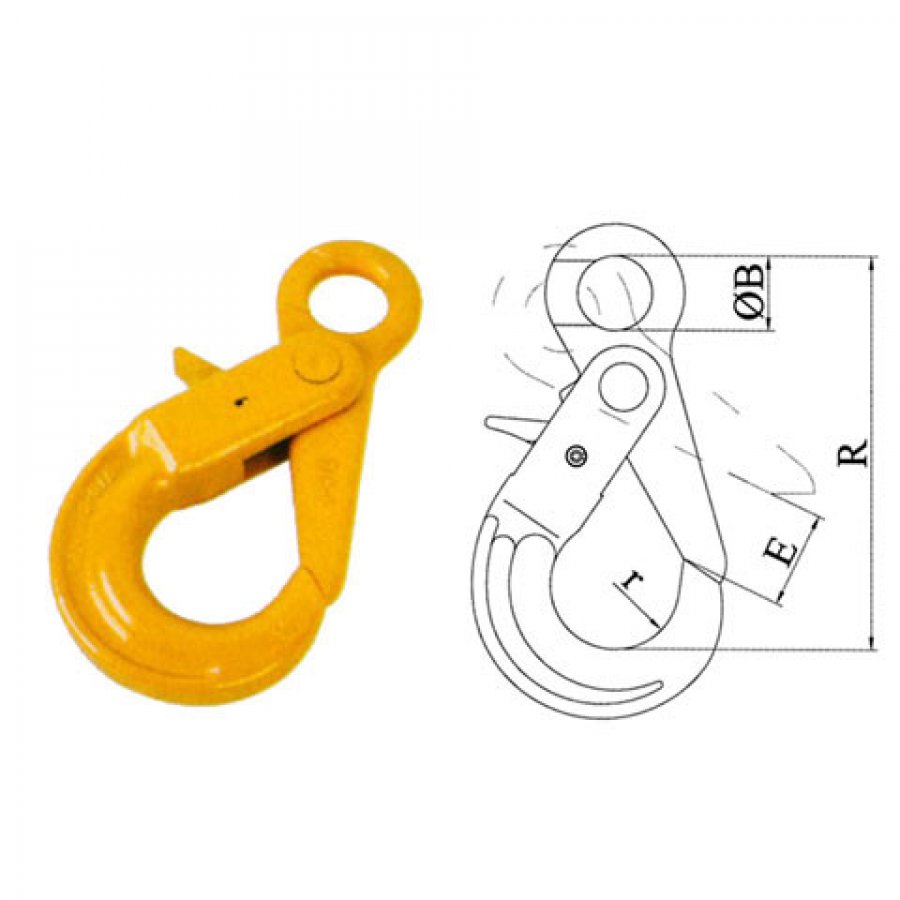

PART. NO.	SIZE (mm)	DIMENSIONS(mm)				W.L.L. (tons)	WEIGHT (kgs)
PART. NO.	SIZE (mm)	B	E	R	r	W.L.L. (tons)	WEIGHT (kgs)
8EHL0060	6	22.0	28.6	110	17.5	1.12	0.54
8EHL0708	7/8	25.5	34.0	134	22	2.0	0.86
8EHL0100	10	33.0	54.0	168	27.5	3.15	1.62
8EHL0130	13	40.5	54.0	206	34.5	5.3	3.25
8EHL0160	16	56	63	255	42	8.0	6.10
8EHL0200	20	60	66	277	48	21.2	8.10
8EHL0220	22	69	76	310	49	15.0	10.65
