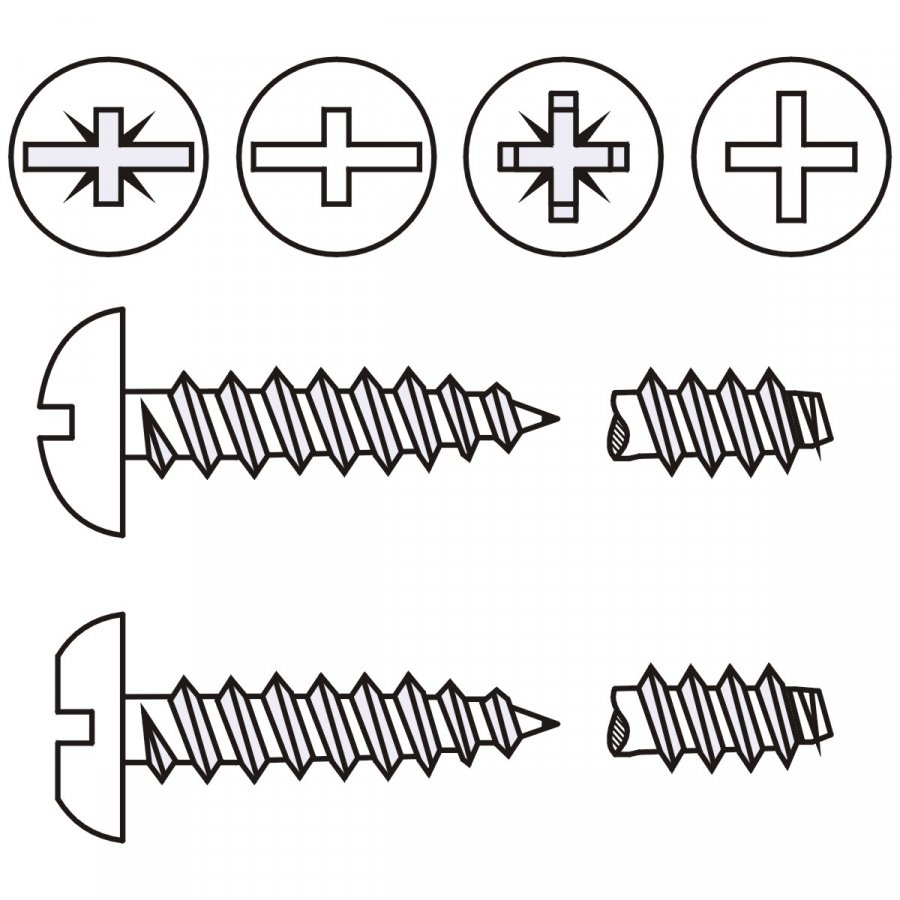

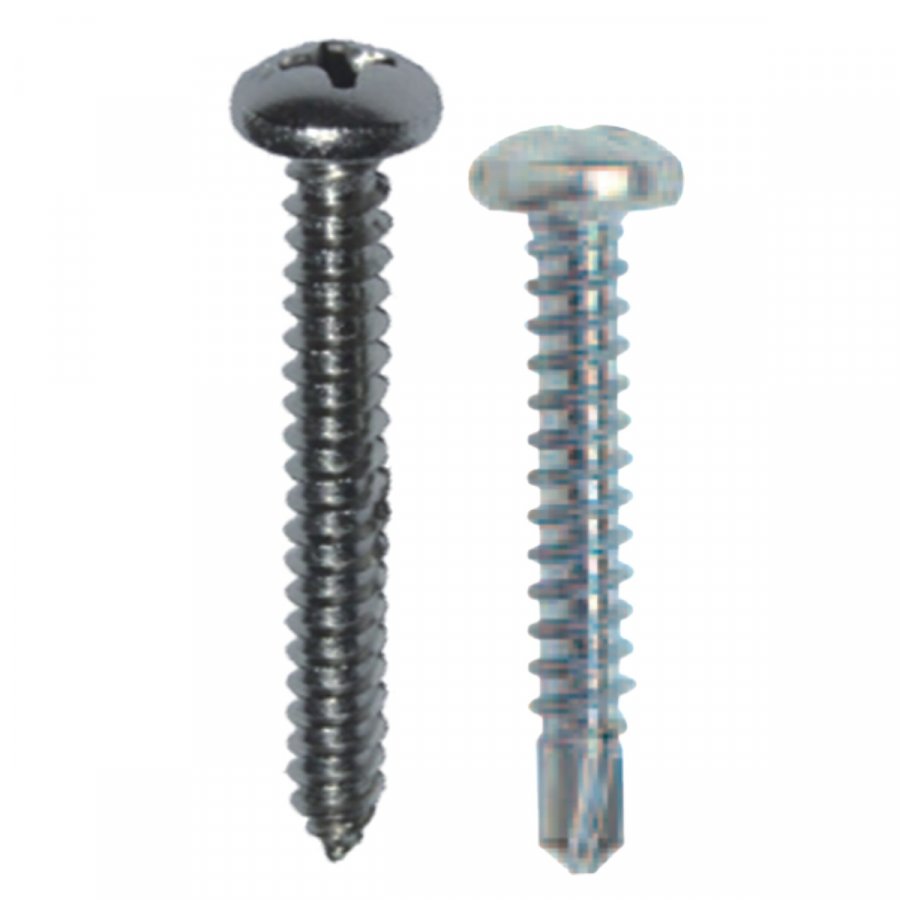

PAN HEAD SCREW

DIN 7981

CROSS RECESSED PAN HEAD

TAPPING SCREWS

ANSI/ASME B18.6.4 1981 IFI H-39(E-35)

CROSS RECESSED PAN HEAD

TAPPING SCREWS

DIN 7971

PAN HEAD TAPPING SCREWS WITH SLOT

ANSI/ASME B18.6.4 1981 IFI H-38(E-34)

SLOTTED PAN HEAD TAPPING SCREWS

I want to inquire

Add to Inquiry Sheet

Products Details

Popular size of DIN 7981 & ANSI/ASME B18.6.4 1981 IFI H-39(E-35)

	2#-2.2	4#-2.9	6#-3.5	7#-3.9	8#-4.2	10#-4.8	12#-5.5	14#-6.3
1/4--6.5	0.21	0.49	0.78
3/8--9.5	0.27	0.59	0.93	1.17	1.52	2.09
1/2--13	0.34	0.71	1.1	1.38	1.76	2.41	3.31	4.84
5/8--16	0.4	0.81	1.25	1.56	1.97	2.67	3.67	5.34
3/4--19		0.91	1.4	1.74	2.19	2.94	4.02	5.84
7/8--22		1.01	1.55	1.92	2.4	3.21	4.38	6.34
1--25		1.11	1.7	2.1	2.61	3.47	4.73	6.84
1-1/4--32		1.35	2.05	2.52	3.1	4.1	5.56	8.01
1-1/2--38		1.55	2.36	2.88	3.52	4.63	6.27	9.01
1-5/8--41			2.5	3.06	3.74	/	/	/
1-3/4--45			2.7	3.3	4.02	5.26	7.1	10.18
2-50			2.96	3.6	4.39	5.7	7.69	11.01
2-1/2--63				4.48	5.34	6.86	9.23	13.18
2-3/4--70				4.9	5.84	/	10.06	14.35
3--75				5.21	6.2	7.93	10.65	15.18
3-1/6--80					6.56	8.37	11.24	16.06
4--100					7.98	10.16	/	/
--105mm							14.2	20.19
